Double shaft shredder is mainly used for the recycling of various waste plastics, such as: large plastic film plastic bags, PP non-woven bags, plastic barrels, tires, rubber and waste wood, used electrical appliances, etc.
| MODEL | GLSDS-300 | GLDS-400 | GLDS-500 | GLDS-500 | GLDS-600 |
| Main Motor Power(kw) | 4 | 5.5 | 7.5 | 7.5*2 | 11*2 |
| Rotor Diameter (mm) | Φ180 | Φ180 | Φ200 | Φ200 | Φ230 |
| Main Shaft Speed(r/min) | 22 | 22 | 20 | 15 | 15 |
| Rotating Blades(PCS) | 20 | 27 | 25 | 24 | 24 |
| Fixed Blades(PCS) | 20 | 27 | 25 | 24 | 24 |
| Dimenesion(mm) | 1100*650*1350 | 1250*650*1450 | 1400*750*1600 | 1650*900*1990 | 2800*3000*2200 |
| Weight(KG) | 400 | 500 | 800 | 1200 | 1800 |
The main shaft is made of forged CrMo alloy, which is precision machined after heat treatment and quenching, to ensure its maximum working strength. Bearings, oil seals, etc. are all from well-known brands, and the connection between the shaft and the reducer is made with standard splines to ensure smooth and reliable transmission.

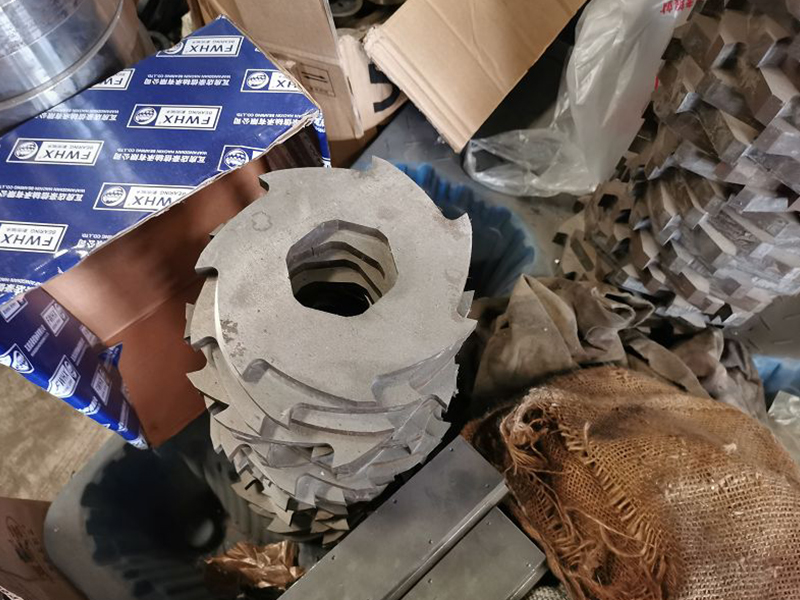

The blade is made of forged 9SiCr high alloy tool steel, which undergoes multiple processing steps such as quenching, multiple tempering, and precision cutting. The blade material is durable, and the structure or material of the blade can be specially designed or adjusted according to the customer's requirements for shredding materials, in order to more effectively meet the shredding needs of different customers.

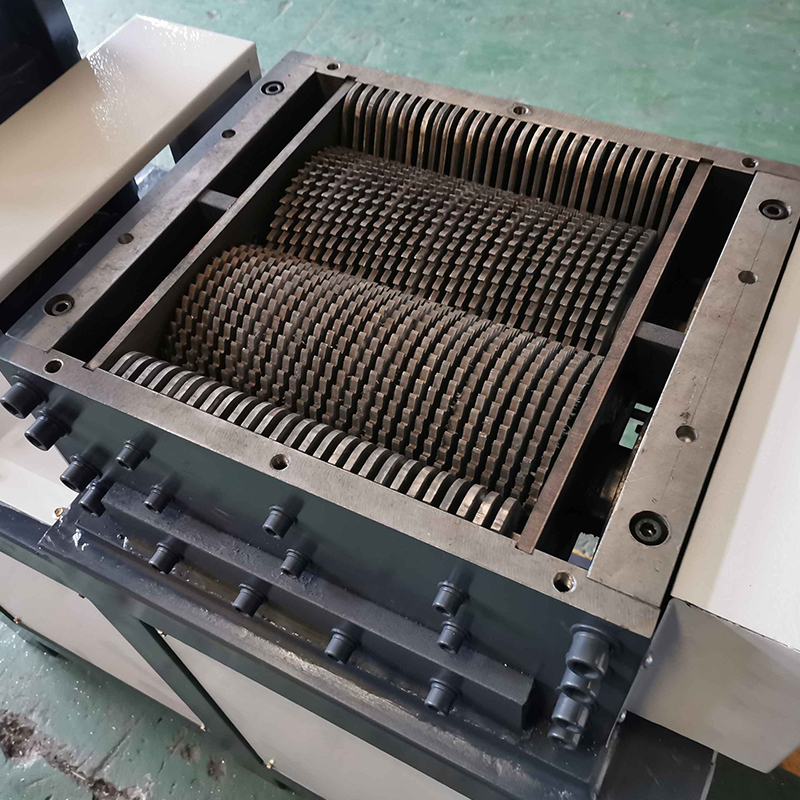

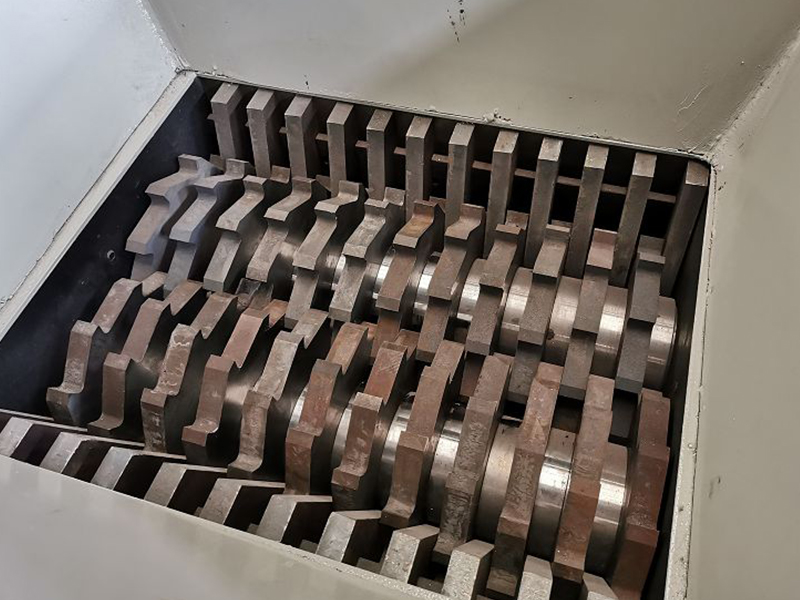

The shredding chamber is welded with thickened steel plates, and after welding, it is processed as a whole after stress relief treatment, which is solid and durable.

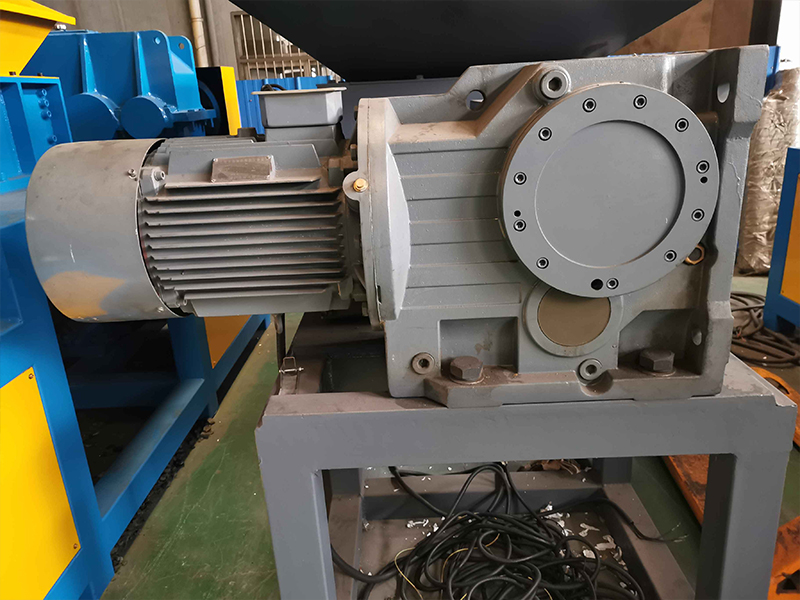

The safety factor of the reducer is above 2.0, ensuring stable operation of the reducer under various working conditions.
If you have other questions, please contact us
Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.
We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C
In some countries, we have agent. We have one-year warranty.
You are welcomed to ask authority agency to visit our factory and machine.
We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
