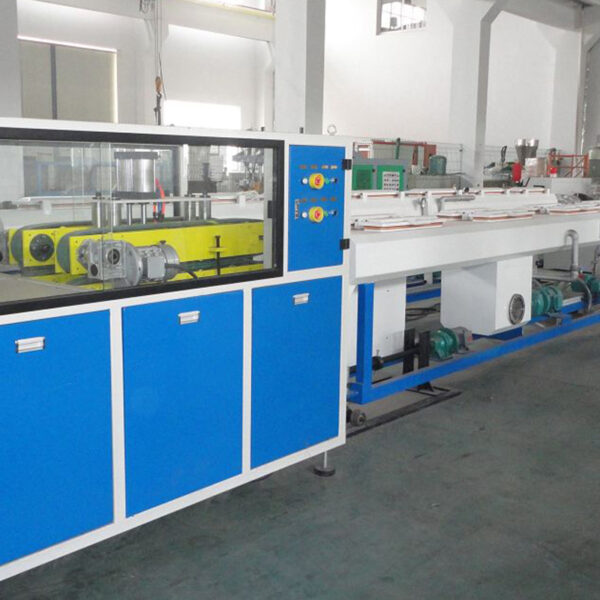

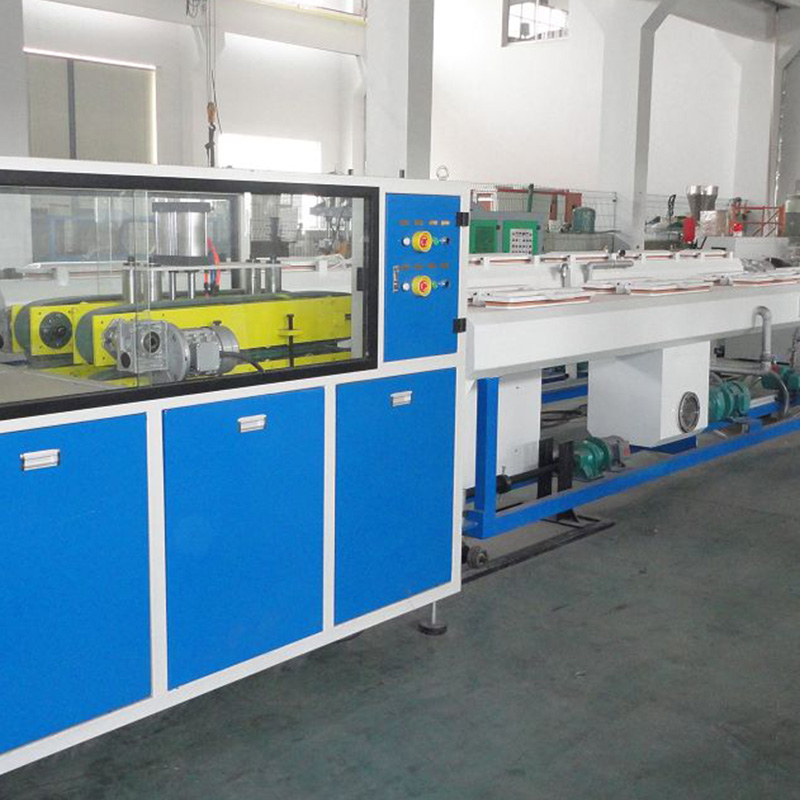

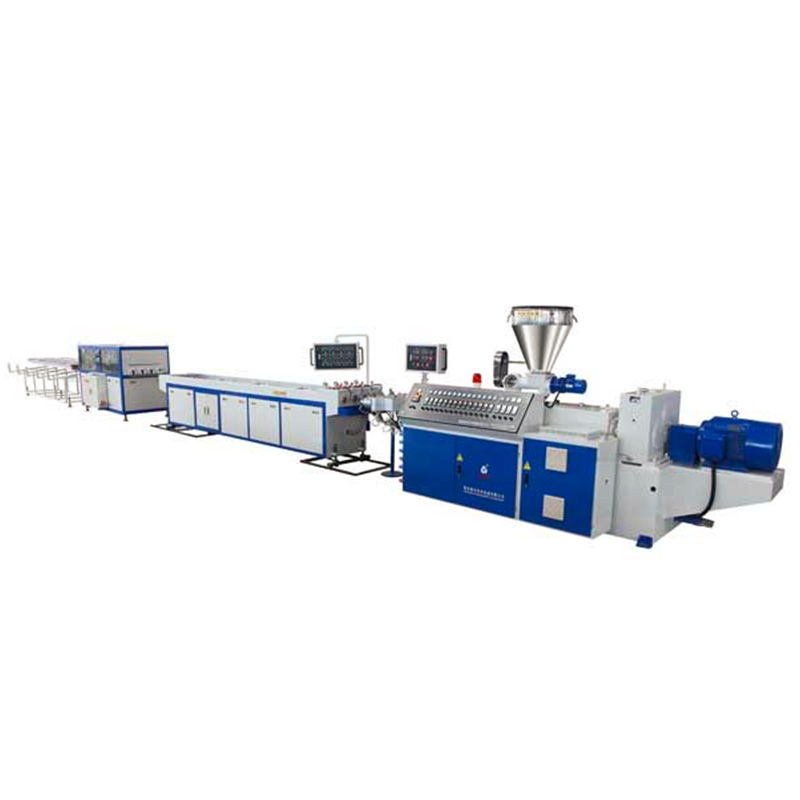

PVC Conduit Extrusion Line is mainly used to produce 16-63mm PVC small-size pipes. The complete production line is equipped with SJSZ51/105 or SJSZ65/132 conical twin screw extruder, which can realize 16-32mm four-pipes output production and 16-40mm or 16-63mm double pipe output. In addition, the production line is equipped with a double cavity vacuum forming tank, double station hauling and cutting unit, high degree of automation, can maximize the production efficiency!
| Pipe range | 16-40mm | 16-63mm | 16-32mm |
| Extruder | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 |
| Pipe quanity | 2(double pipe output） | 2(double pipe output） | 4(four pipe output） |
| Extruder power | 18.5kw | 37kw | 37kw |
| Extrusion capacity | 120kg/h | 250kg/h | 250kg/h |
| Max. Production speed | 2 x 10m/min | 2 x 15m/min | 4 x 10m/min |
If you have other questions, please contact us
Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.
We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C
In some countries, we have agent. We have one-year warranty.
You are welcomed to ask authority agency to visit our factory and machine.
We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
