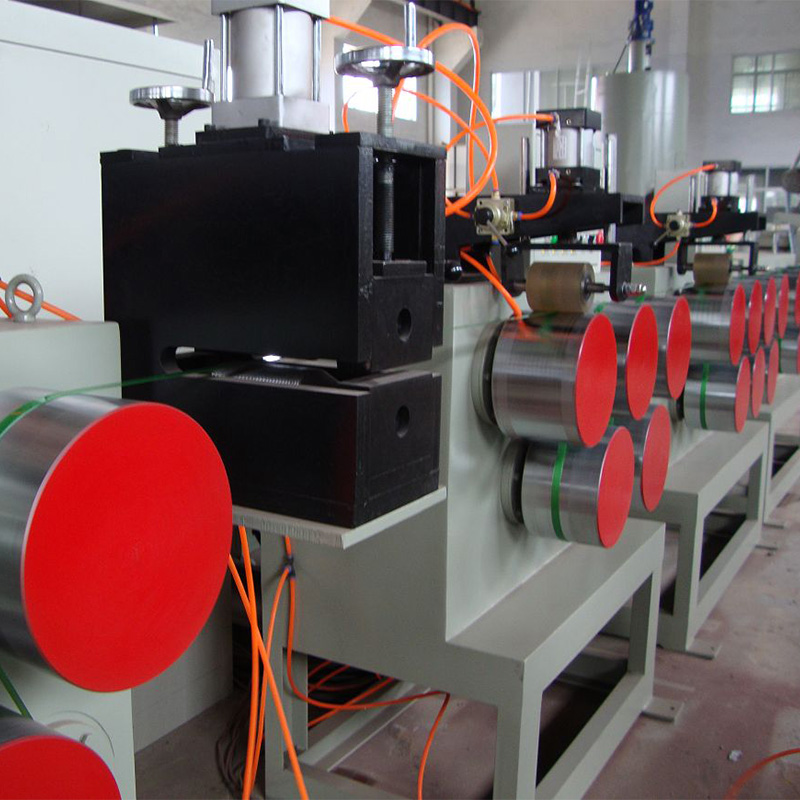

PET Packing Strap Extrusion Line adopts advanced comby dehumidify dryer system. It make sure the material humidity at 80PPM at 50PPM dew point. Meanwhile,itcompact material and increase the viscidity.
Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material.
Mold can produce different model product from 9-20mm witdth PET strap. Equip hydraulic screen exchanger without material leak.
Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product’s stretch intensity.
The strap after formed will be warm and anneal treated to wipe off the part stress remained after stretch. It makes molecule tropism be steady to avoid strap distortion caused by storage.
The winder adopts double work position and auto-meter. It is easy operation and convenient coil change.
Centralized electrical control, PLC self-correcting control. Easy operation.
| Model | Capacity | Total power | Strap size | Labor cost | Area required |
| SJ65 single output | 50-60kgh | 85kw | 9-20mm | 1~2 | 35*4*5m (L*W*H) |
| SJ75 single output | 80-100kgh | 100kw | 9-20mm | 1~2 | 38*4*5m (L*W*H) |
| SJ75 double output | 80-120kgh | 110KW | 9-20mm | 1~2 | 40*5*5m (L*W*H) |
| SJ90 double output | 120-150kgh | 145KW | 9-20mm | 1~2 | 43*4.5*5m (L*W*H) |
| SJ120 double output | 150-200kgh | 210KW | 9-20mm | 2~3 | 45*5*5m |
If you have other questions, please contact us
Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.
We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C
In some countries, we have agent. We have one-year warranty.
You are welcomed to ask authority agency to visit our factory and machine.
We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
