PET Bottle Recycling Line

Catagory: Plastic washing recycling machine

This PET bottle recycling line is mainly used to recycle waste PET bottles to make PET flakes ,mainly inclue de-baling machine, conveyor belt, label remover, sorting system,crushing, floating washing tank, hot washing tank, frication washing, dewatering &hot air drying system, label separator a,with the above machines and process can easily to remove the labels, caps, rings, glue, dirties and other impurities, finally you will produce to clean PET flakes。It can reach achieve request of “”Bottle to Bottle”” ,””Bottle to Fiber product””
We can make recycling line according to different customize requirements!

PET Bottle Recycling Line Process

Pet Bottle Recycling Line Parameters

Capacity	Installation power	Area required	Labor required	Water supply
500kg/h	155kwh	35106m	5-6	3t/h
1000kg/h	285kwh	50126m	6-8	4t/h
1500kg/h	350kwh	70126m	6-8	5t/h
2000kg/h	485kwh	80156m	9-10	6t/h
3000kg/h	690kwh	100187m	10-12	7t/h

PETflakes quality reference

Viscosity	0.65-0.76
Flakes size	8-12mm (or customized）
Moisture	0.5-2%
PVC content	100PPM
PE/PP content	100PPM
Total impurity	200PPM

PET Bottle Recycling Line Related Products

Bale breaker

Break compressed PET bottle bales ,lower labor cost and improve working effectiveness

Label remover

Remove label ,caps，neck-rings,get rid of non-PET part effectively ,max can reach 95-98% ,according to customers’ choice and bottles conditions ,there are dry type and wet type label removing options

Crusher

Crush PET bottles, SKD material blade,can work with water，make PET flakes cleaner


Hot washing

Electricity heating or steam heating,automatical temperature controlling system ,may add NaOH or other detergent,can remove PET flakes glue and oil


Floating washing machine

Washing PET flakes ,at the same time ,separate and remove PVC labels and HDPE cap chips

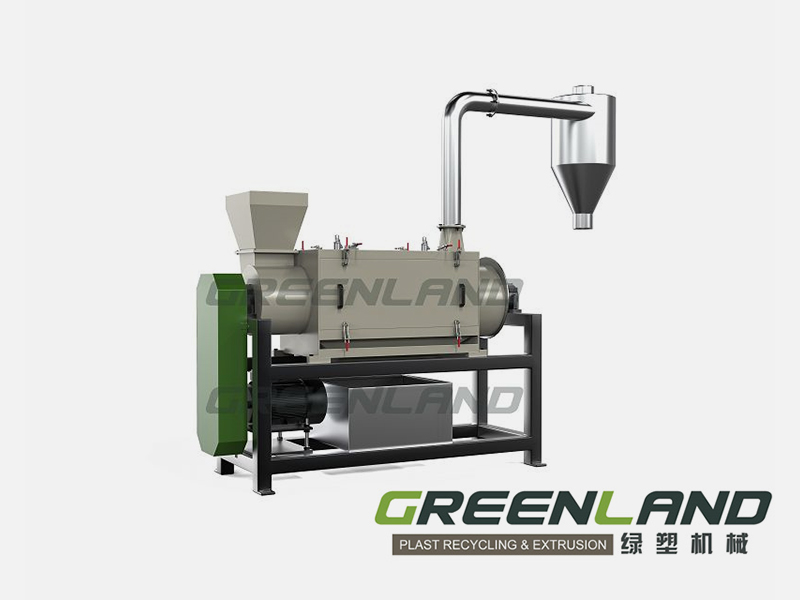

Dewatering machine

High speed rotation dewatering,there are horizontal dewatering and vertical dewatering machine optionals,in big capacity line ,horizontal dewatering is better


Label Separator

Remove the remaining labels with different specific gravity of the PET flakes and label flakes

Assembly Line

Packaged & shipped

FAQ

If you have other questions, please contact us

If I need more information, how to contact you?

Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.

How to buy your machine？

We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C

What about the machine warranty?

In some countries, we have agent. We have one-year warranty.

How can I believe your factory and company?

You are welcomed to ask authority agency to visit our factory and machine.

Do you have other service?

We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Where is your factory located?

Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
