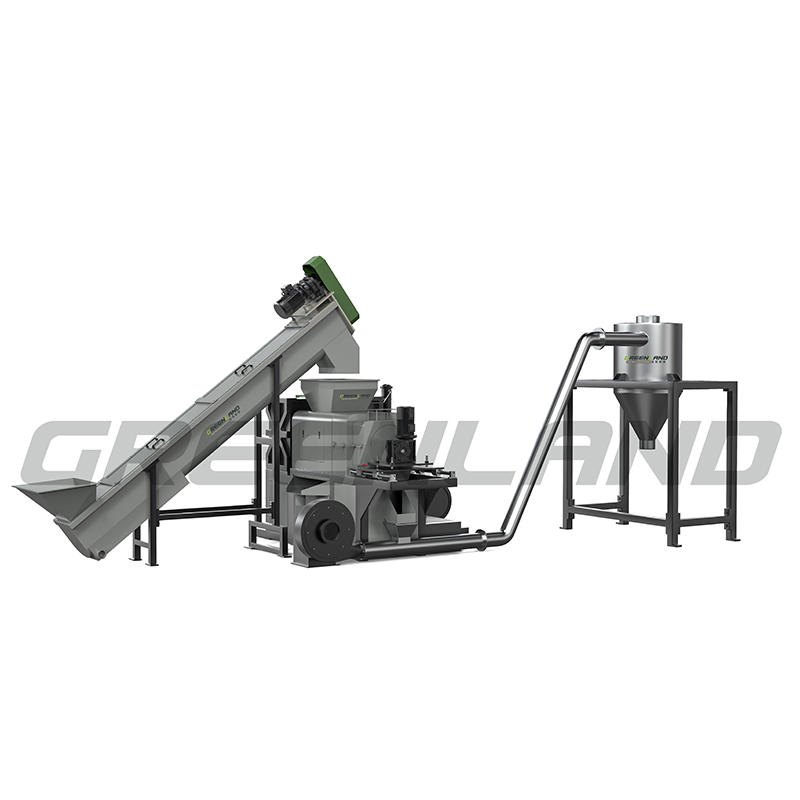

Film Squeezing Compactor Machine

This film squeezing compactor machine is used for films, woven bag, ton bag, nylon, etc similar soft plastic dewatering &drying. This machine can squeeze dry and get semi-plasticized flakes ,according to the screw extrusion principle. The semi-plasticized particles can be directly used in the pelletizing line.,increase the capacity of pelletizing line and pellets quality! The machine can also be connected to the washing line ,high degree of automation!

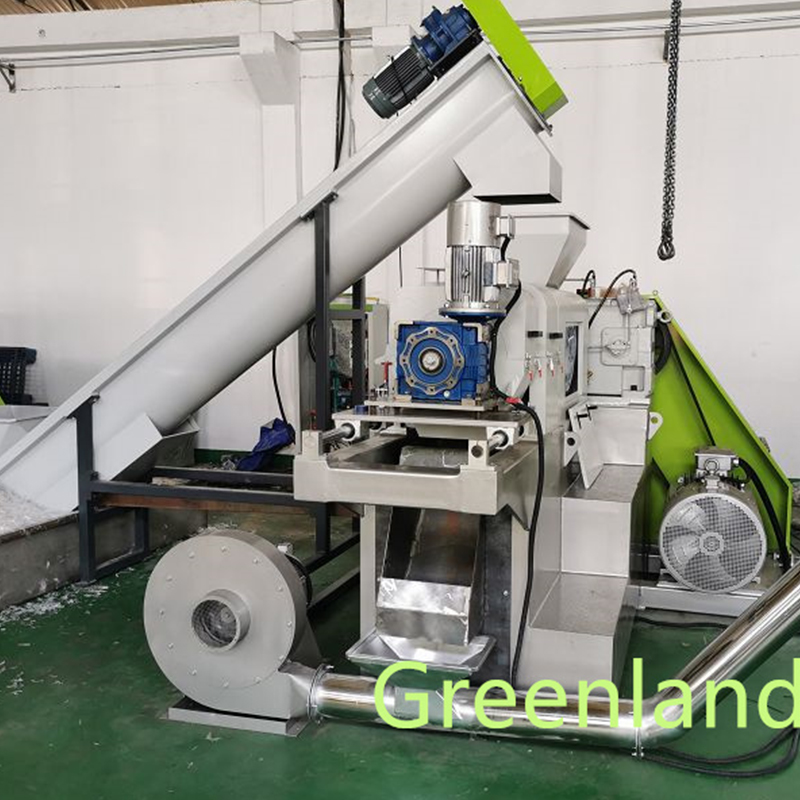

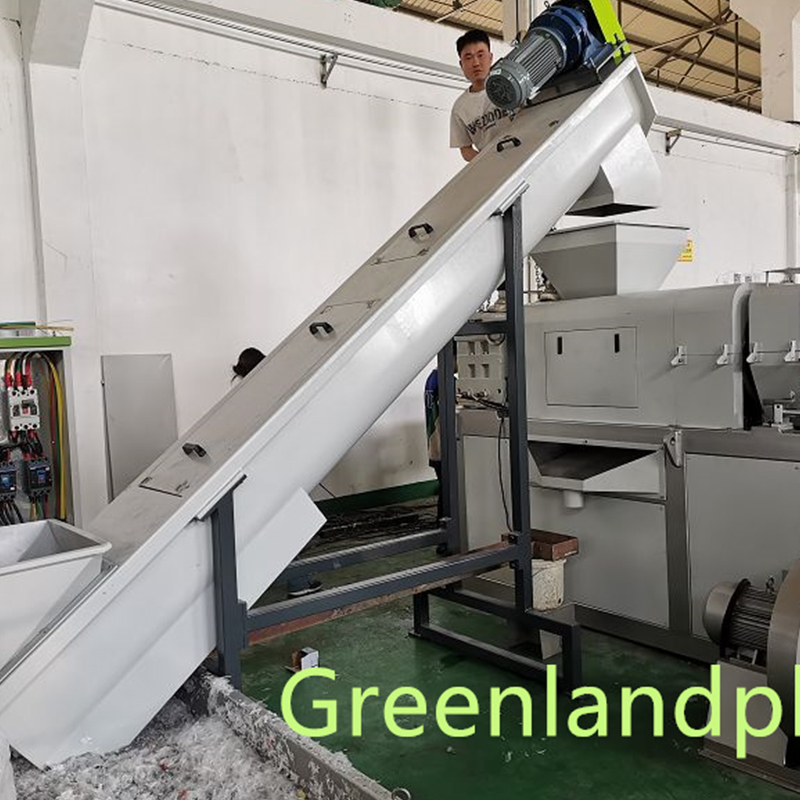

Film Squeezing Compactor Machine

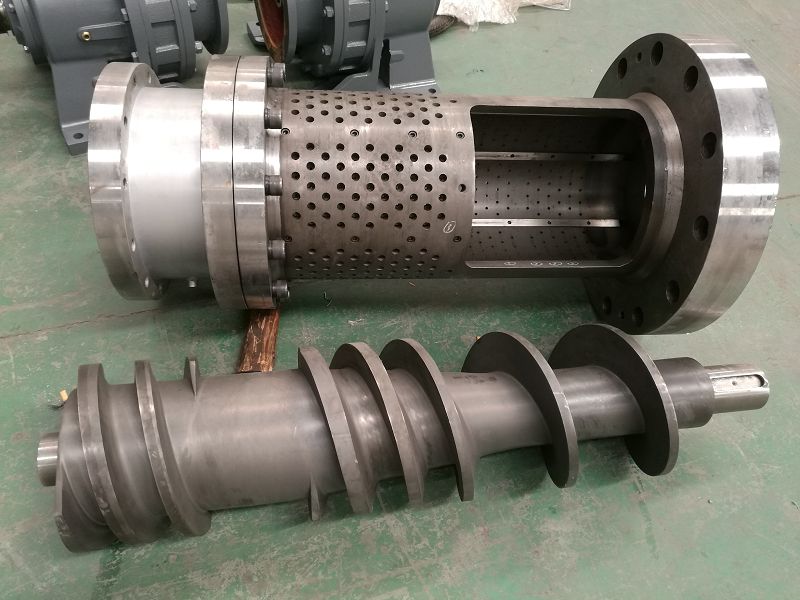

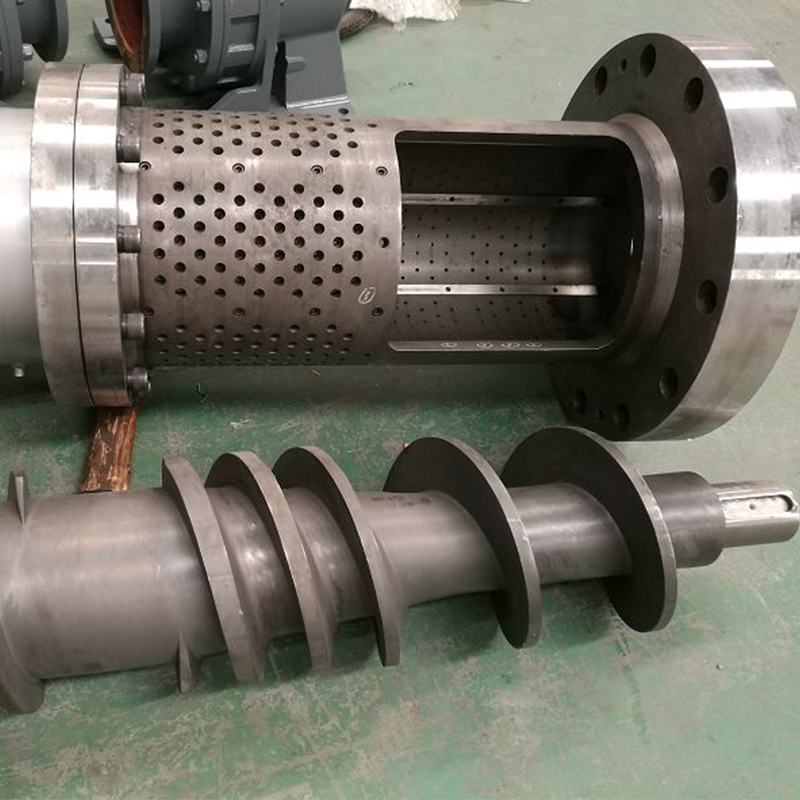

Screw&barrel nitrogen treatment,integral forging

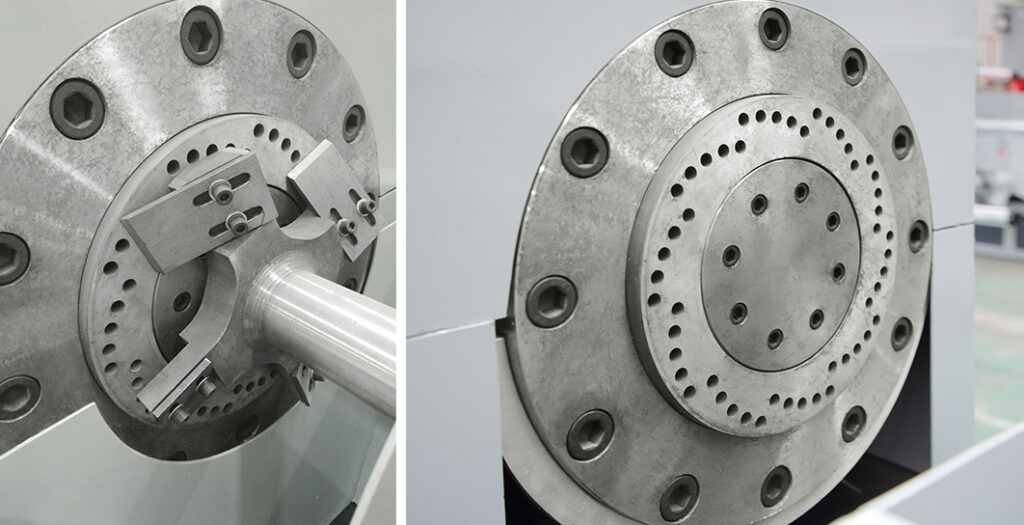

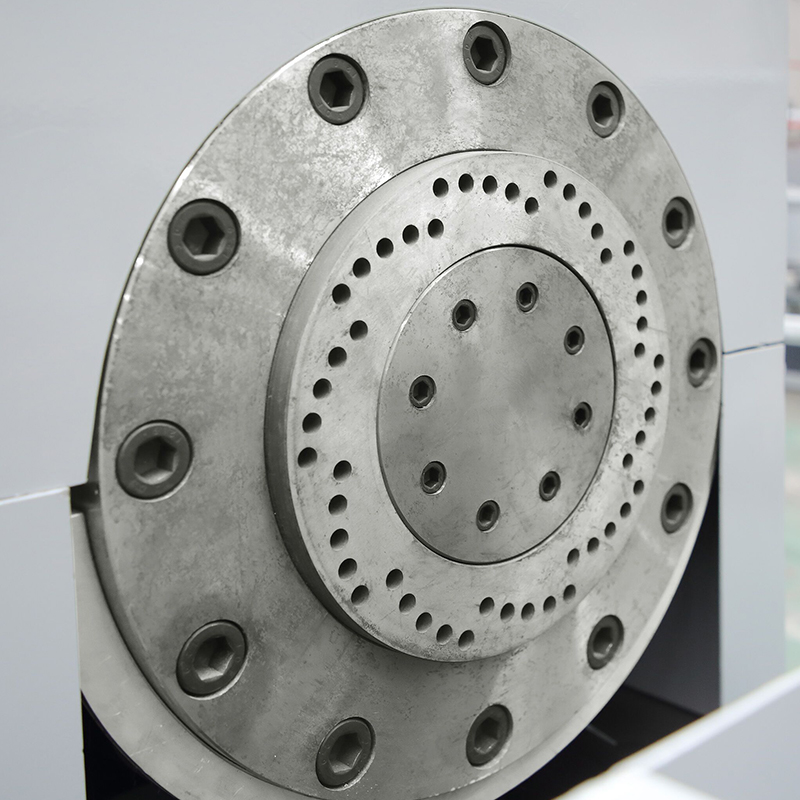

Cutting die head &blades

Film Squeezing Compactor Machine Benefits

  • Unique design screw&barrel,good continuity,stable and high output
  • High compacting density,,suqeezd output recycled material may be rigid flakes or lumps conditions
  • Squeezed material humidity only 1-3%,imporve pelletizing output and quality
  • High capacity close to 1000 kg per hour
  • Adjustable rotation cutting speed,suitable for different types of material,
  • Can be connected with washing line and pelletizing line ,high degree automation,improve production efficiency prominetly

Film Squeezing Compactor Machine Technical Dates

Model GLS-250 GLS-300 GLS-320 GLS-350 GLS-380
Capacity 250Kgh 400Kgh 600Kgh 800Kgh 1000Kgh
Screw diameter 250mm 300mm 320mm 350mm 380mm
Main motor 55kw 90kw 110kw 160kw 185kw
Cutting blades 4pcs 4pcs 4pcs 4pcs 4pcs

Assembly Line

1. Desing
2. Cutting
3.Bending
4.Driling
5.Welding
6.Assembling

Packaged & shipped

FAQ

If you have other questions, please contact us

Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.

We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C

In some countries, we have agent. We have one-year warranty.

You are welcomed to ask authority agency to visit our factory and machine.

We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.

What are you waiting for? Contact us now! Get your best solution.

Specializing in waste plastic recycling&extrusion ideal project solutions
