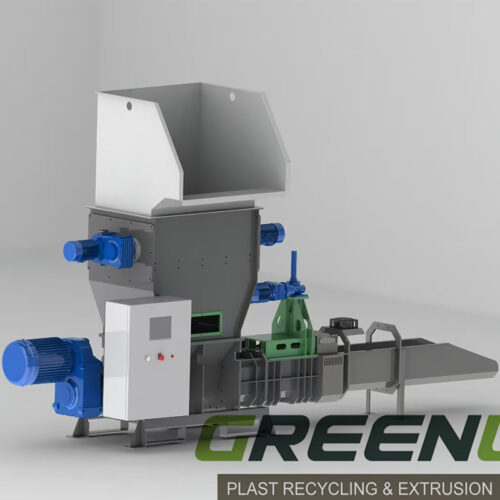

EPS Foam Hot Melting Machine

Catagory: EPS foam recycling machine

EPS Foam Hot Melting Machine compress foam by screw heating melting extrusion way,then make the foam scrap d into an EPS foam compression blocks. Our Greenland brand foam hot melting compressor machines, can reach max up to 90 times compression ratio, greatly reduce the storage and transportation costs of EPS foam, are good choice for EPS foam recycling.

此图片的alt属性为空；文件名为%E5%9B%BE%E7%89%871.png — Heating zones controlled independently

EPS Foam Hot Melting Machine Benefits

Screw heating melting compression technology ,max compression ration reach 90:1
Screw barrel each heating zones be controlled independently ,more precise temperature controlling ,ensure better quality EPS blocks
Reasonable designed operation panel ,makes the operation be easy and convenient
All parts are Omron, Schneider .,etc international brands ,quality realiable & durable.
Suitable for different types and condtions EPS,EPE,XPS ,EPP,widely used
We can make customzied foam recycling scheme for different applications customers

EPS Foam Hot Melting Machine Technical Dates

Model	GLHM50	GLHM100	GLHM200	GLHM300
Screw diameter	Φ100 mm	Φ180-120mm	Φ180-120mm	Φ197-136mm
Screw length	1050 mm	2500mm	2500mm	2500mm
Screw speed	150 r/min	110r/min	110m/min	110m/min
Capacity	40-50Kg/h	80-120kg/h	180-200kg/h	200-300kg/h
Screen hole diameter	40 mm	50mm	50mm	50mm
Extrusion center height	300 mm	366mm	366mm	400mm
Motor power	5.5KW	15kw	18.5kw	22kw
Heating power	4KW	10kw	14kw	18kw
Crusher motor power	1.5KW	2.2+2.2kw	2.2+2.2+2.2+2.2kw	2.2+2.2+2.2+2.2kw
Crusher blades quatity	9sets	9+10sets	9+10+9+10sets	9+10+9+10sets
Crusher rotation speed	110r/m	110mm	110mm	110mm
Size L×W×H	1410×1085×1600mm	2030×1400×2050mm	3400×1880×2550mm	4960x4480x4430mm
Weight	1000 Kg	1800kg	2500kg	2600kg

Assembly Line

Packaged & shipped

FAQ

If you have other questions, please contact us

If I need more information, how to contact you?

Send me your demands by email or whatsapp, we will get back recommend suitable project solution and quote accordingly.

How to buy your machine？

We send detailed machine quotation to you, if you are satisfied, we will make contract for you. Payment terms: T/T, L/C

What about the machine warranty?

In some countries, we have agent. We have one-year warranty.

How can I believe your factory and company?

You are welcomed to ask authority agency to visit our factory and machine.

Do you have other service?

We can assign engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Where is your factory located?

Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
